Bridge LR

Bridge LR converter RS-485 Modbus LoRa wireless long range communications


Become wireless, be smart



Bridge LR provides LoRaTM radio communications to any Modbus RS-485 device turning it into a wireless sensor.



RS-485 Modbus LoRa wireless long range communications schema



It seems magic



Long range radio communication completely transparent between Modbus master and sensors.







Easy configuration for quick installation

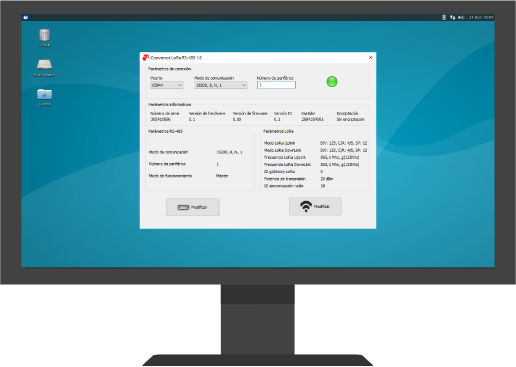

Set up Bridge LR using the PC application to configure all you need.



I want it







Bridge LR is a bridge that converts RS-485 physical environment to wireless long range network LoRaTM. The device is completely configurable by the PC application, used to setup any parameter of RS-485 serial port or LoRaTM radio.

The solution has a master bridge connected to RS-485 Modbus RTU master, and as many slave bridges as sensors we want to monitor. The communication between master and slaves is completely transparent to allow an easy installation. However, it is required to configure the timeout time between Modbus master and final sensors to 3 seconds.

Bridge LR has 1 km of indoor coverage and 20 of outdoor coverage.

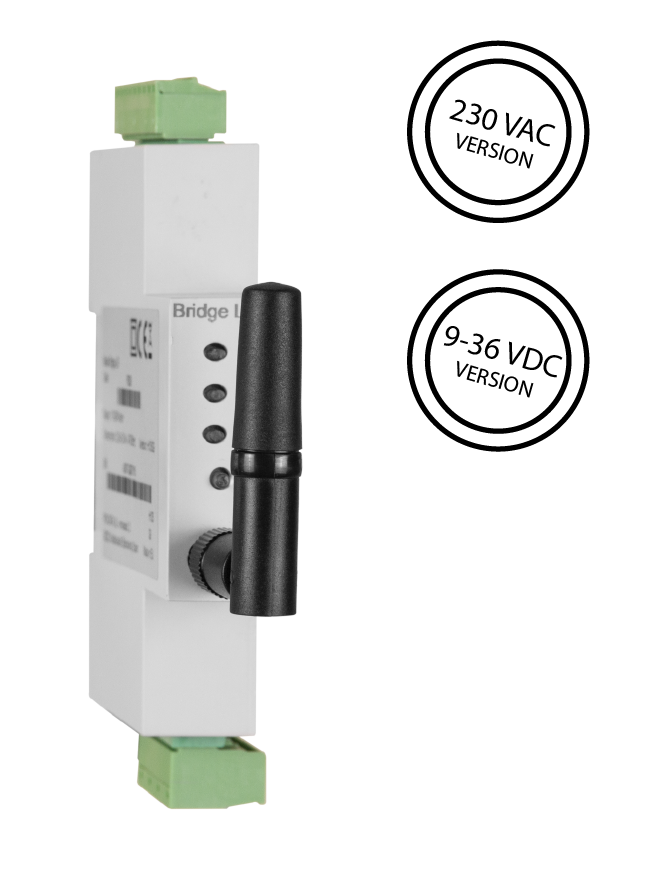

Bridge LR 230 VAC

  • Transparent communication with LoRaTM protocol
  • RS-485 communication with master
  • Modbus RTU protocol
  • Remote configuration
  • Status LEDs
  • External antenna
  • Manual reset
  • 230 VAC input voltage
  • DIN rail installation
  • Unlimited number of sensors
  • LoRaTM communication up to 20000 meters at outside areas
  • LoRaTM communication up to 1000 meters at inside areas
  • PC self-extinguishing box

Bridge LR 12 VDC

  • Transparent communication with LoRaTM protocol
  • RS-485 communication with master
  • Modbus RTU protocol
  • Remote configuration
  • Status LEDs
  • External antenna
  • Manual reset
  • 12 VDC input voltage
  • Wall mounting
  • Unlimited number of sensors
  • LoRaTM communication up to 20000 meters at outside areas
  • LoRaTM communication up to 1000 meters at inside areas
  • PC self-extinguishing box

External antenna 5 dBi

  • VSWR ≤ 1.5
  • Gain(dBi): 5dBi
  • Max Input power(W): 60 W
  • Input Impedance(Ω): 50 Ω
  • Polarization: Vertical
  • Antenna Length(mm): 395 mm
  • Connector SMA

External antenna 2,2 dBi with cable

  • VSWR ≤ 2
  • Gain(dBi): 2,2 dBi
  • Max Input power(W): 100 W
  • Input Impedance(Ω): 50 Ω
  • Polarization: Vertical
  • Antenna Length(mm): 241 mm x 16 mm
  • Connector SMA





Datasheet Bridge LR 230 VAC  English  Español

Datasheet Bridge LR 12 VDC  English  Español

Manual Bridge LR 230 VAC  English  Español  Português

Manual Bridge LR 12 VDC  English  Español  Português

User manual Bridge LR 230 VAC  Multilanguage

User manual Bridge LR 12 VDC  Multilanguage

PC Software  Download

Antenna 2,2 dBi with 2 meter cable - Datasheet (ACCESSORY)  English  Español

Antenna IP67 4 dBi with 1 meter cable - Datasheet (ACCESSORY)  English  Español
