eManager Essentials

eManager Industrial IoT OEM Modular Controller by eMOD product range

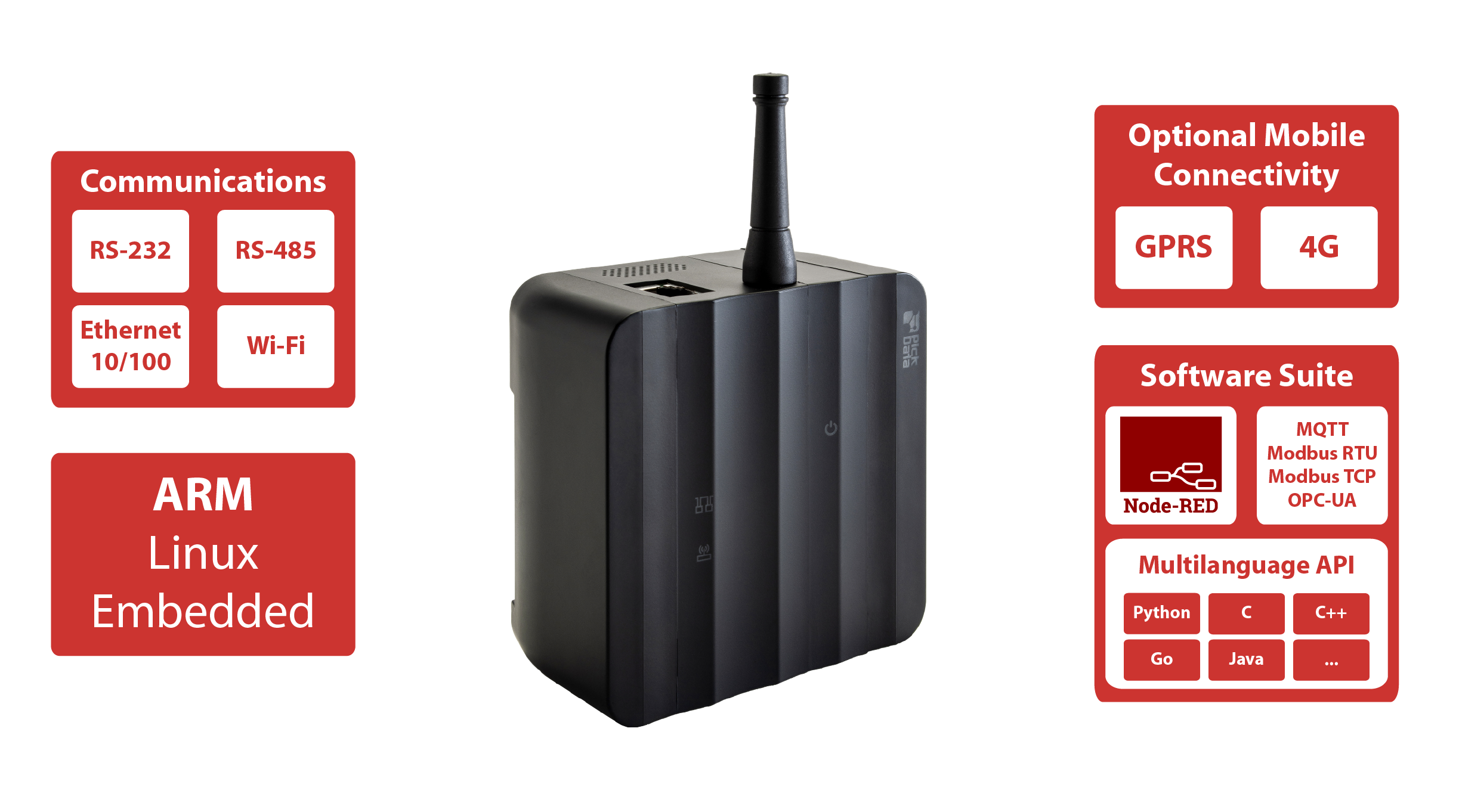

All-in-one OEM industrial controller



eManager is equipped with a high performance Linux Embedded system-on-chip.

It centralizes communication and protocol integration.

Our task, provide an industrial hardware and facilitate your development.

Your task, focus on your application.



eManager Essentials



eManager Datalogger NodeRED Smart IoT Gateway

eManager




Basic CPU.
AC Power supply.
RS-232/485, Ethernet & Wi-Fi.

eManager GPRS Datalogger Smart IoT Gateway

eManager GPRS



Basic CPU.
AC Power supply.
RS-232/485, Eth, Wi-Fi & GPRS.

eManager GPRS Datalogger Smart IoT Gateway

eManager GPRS (DC)



Basic CPU.
DC Power supply.
RS-232/485, Eth, Wi-Fi & GPRS.

eManager 4G Datalogger Smart IoT Gateway

eManager 4G




Basic CPU.
AC Power supply.
RS-232/485, Eth, Wi-Fi, 4G LTE Cat1.


eManager Pro Datalogger NodeRED Smart IoT Gateway

eManager Pro




Pro CPU.
AC Power supply.
RS-232/485, Ethernet & Wi-Fi.

eManager Pro GPRS Datalogger Smart IoT Gateway

eManager Pro GPRS



Pro CPU.
AC Power supply.
RS-232/485, Eth, Wi-Fi & GPRS.

eManager Pro GPRS Datalogger Smart IoT Gateway

eManager Pro GPRS (DC)



Pro CPU.
DC Power supply.
RS-232/485, Eth, Wi-Fi & GPRS.

eManager Pro 4G Datalogger Smart IoT Gateway

eManager Pro 4G



Pro CPU.
AC Power supply.
RS-232/485, Eth, Wi-Fi, 4G LTE Cat1.



eManager Industrial IoT OEM Modular Controller by eMOD product range



Modularity to the edge



Get to now eManager ACTIO and eManager Energy to add features to your eManager.

If you need more, choose your expansion modules and create the perfect device for your application.

Digital & Analogue I/O, Energy metering, PT-100, Supercapacitor and many more.






  • Node-RED

  • Node-RED is fully integrated on eManager, including custom nodes for each module. Easy implementation and fast development

  • Multilanguage API

  • Our multilanguage API will allow you to use the most appropriate language to develop your own application (C, C++, Python, Go, Java...)

  • Public protocol libraries

  • With eManager you will have access to a complete set of public protocol libraries including Modbus RTU, Modbus TCP, MQTT, BACNET and many more




Your business, your software



We provide the best industrial hardware and amazing open software tools.

Multilanguage API to facilitate your own development using Python, C, C++, Java or Go.

Accelerate your development with Node-RED to easy communicate with devices and machines via MQTT, Modbus RTU, Modbus TCP, OPC-UA, BACNET and many more.

Just focus on your business software needs.







eManager Industrial IoT OEM Modular Controller by eMOD product range



We care about branding



Once you have chosen your eManager, your expansion modules and being created your own software application, only one very important detail is missing, add your logo.



Request for quotation





eManager is an OEM industrial controller which is equipped with a high-performance control unit with a Linux Yocto embedded and Node-RED software integrated. The device includes RS-232/485 serial communications, an Ethernet 10/100 port and Wi-Fi communications. Two versions, eManager and eManager Pro, with different options of CPU clock, flash storage or RAM memory. In addition, eManager can be expanded with GSM/GPRS communications, Digital & Analogue I/O, Energy metering and many more modules.

eManager is equipped with a software platform designed for easily developing industrial and edge computing applications. With eManager you can smoothly develop your application with our multilanguage API which include the most popular programming language for IoT applications (C, C++, Python, Go, Java...). In addition, eManager fully integrates Node-RED which includes protocols such as Modbus, BACNET, MQTT, OPC-UA, together with easy communication with platforms like Amazon WBS, Microsoft Azure, Google Cloud and more.

If you want to learn more about how to work with eManager product range access to https://docs.pickdata.net





Hardware

  • eManager
    • ARM CORTEX-A7 700 Mhz
    • 256 MB DDR3 memory
    • 512 MB NAND flash memory
  • eManager Pro
    • ARM CORTEX-A7 800 Mhz
    • 512 MB DDR3 memory
    • 8 GB eMMC flash memory
  • GPRS, Digital & Analogue I/O, Energy metering and many more expansion modules
  • Wi-Fi and BT (optional)
  • RS-232/485 from 9600 to 115200 bps
  • Ethernet port 10/100 Mbps
  • Double-insulated class II
  • CAT III 300V
  • Standards UNE EN 61010-1, UNE-EN 61000-6-2, UNE-EN 61000-6-4
  • SMA female connector for external antenna
  • Manual reset
  • Direct input voltage 230 Vac
  • DIN Rail mounting
  • Enclosure box UL94 polycarbonate - self-extinguishing V0
  • CE Certified

Software

  • Linux Yocto integrated (other on request)
  • The eManager framework includes:
    • eMOD Libs: Our libraries to communicate with each module of the eManager
    • API: The API that you will use to communicate with the eMOD libs.
    • Toolkit: Complete set of software tools to easy develop your application including Node-RED, Edge X Foundry, public Modbus libraries, ...
    • SDK: Kit of software development tools for a specific platform including compiler, linker, ...



eManager expansion modules

  • GSM/GPRS communications
  • 10 Digital inputs
  • 5 Digital inputs and 2 Power relays
  • 8 Signal relays NO/NC
  • Supercapacitor
  • 7 Analogue inputs and 2 Power relays
  • 12 Analogue inputs
  • Three phase energy meter
  • Double three phase energy meter
  • 9-36 DC Power supply

On development....

  • 4G communications
  • LoRa communications
  • Current analogue outputs
  • Voltage analogue outputs





Devices

Datasheet eManager   English  Español

Datasheet eManager GPRS  English  Español

Datasheet eManager Pro  English  Español

Datasheet eManager Pro GPRS  English  Español

Manual eManager GPRS  English  Español

Manual eManager Pro GPRS  English  Español



Expansion modules

Expansion modules Summary Specsheet  English  Español

8 Signal relays  English  Español

5 Digital inputs & 2 Power relays  English  Español

10 Digital inputs  English  Español

7 Analog inputs & 2 Power relays  English  Español

12 Analog inputs  English  Español

Three phase energy meter  English  Español

DC Power Supply (9-36 VDC)  English  Español

Supercapacitor (Battery)  English  Español



Accesories

Antenna 2,2 dBi with 2 meter cable - Datasheet (ACCESSORY)  English  Español

Antenna IP67 4 dBi with 1 meter cable - Datasheet (ACCESSORY)  English  Español
