Three-phase energy metering joins eManager to extend the features of the best markets modular solution, combining energy management with automation and industrial control. From now on you can add electric consumption monitoring to the data capturing and computing point.
eManager Energy is the concentrators product range that integrates up to 2 three-phase energy meter or up to 6 single-phase meters. They can be combined with any eMOD expansion module to create the ideal IoT controller for each project. Create your own industrial controller digital inputs, relays, analog inputs, 4G, GPRS communications, … and many more.
4 quadrants and the best accuracy
Three-phase energy metering module can measure 4 quadrants including voltage, current, active, reactive and apparent power, active and reactive energy, consumed and generated, frequency and cos phi, single phase and three phase parameters.
Measurement accuracy of class 1 active energy and class 2 reactive energy, and current secondary is 1A.
This module occupies 2 DIN rail modules and it can incorporate one meter, for 1 three-phase circuit or 3 single-phase circuits, or two meters, for 2 three-phase circuits or 6 single-phase.
Non-limit development with Node-RED fully integrated

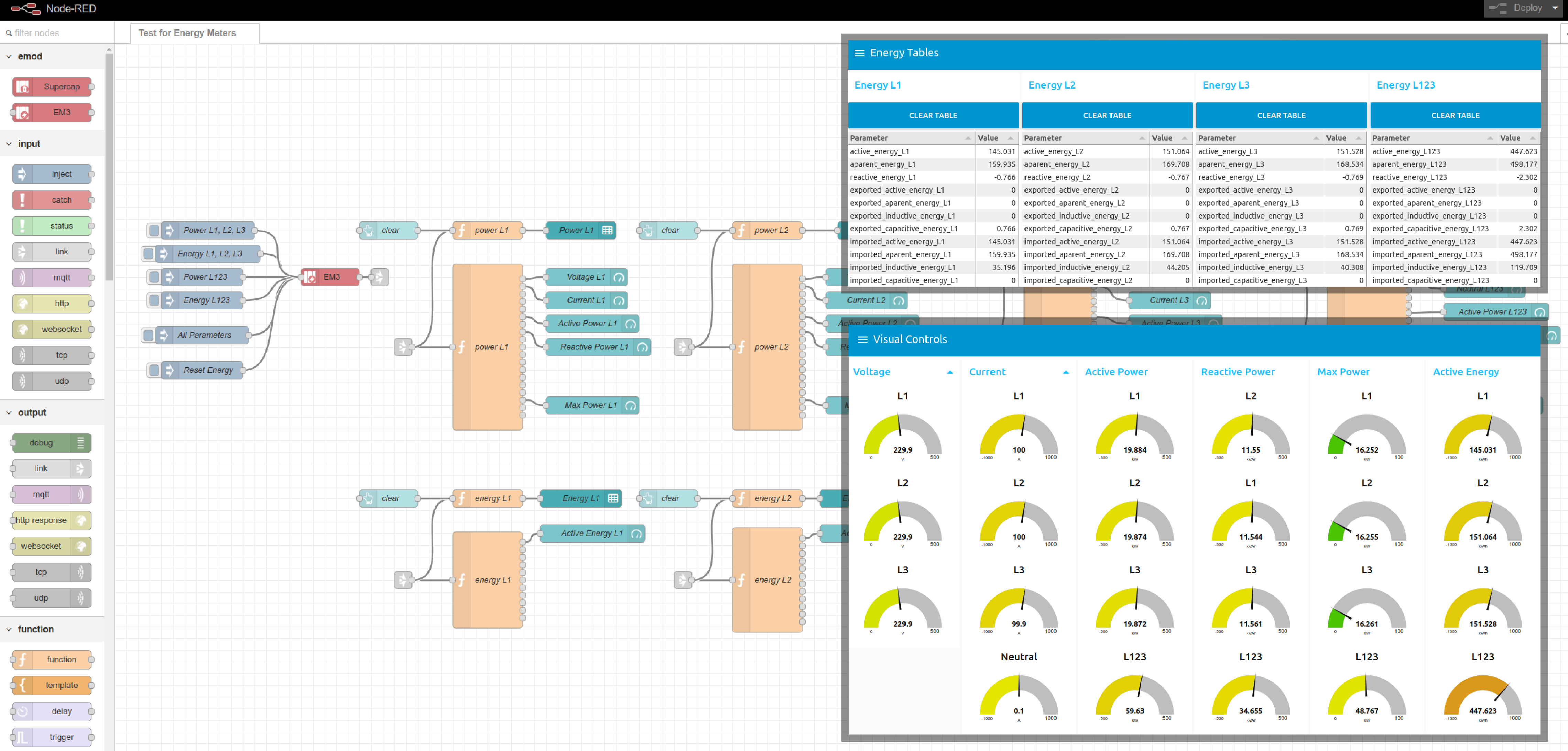

Developments must be as easy and agile as possible, and that is why PickData has integrated Node-RED with customized nodes to interact with our industrial modules in an efficient way.
The union of Node-RED and eManager provides the capacity to implement any application adapted to the projects needs with a visual and fast development environment. You can avoid infrastructure works, patterns repeating and jump directly to what really brings value to your customers.
eManager Energy will allow you to capture parameters like voltage, current, power or energy, among others, and easily send it via MQTT to a cloud server like Grafana. Or just create an internal database with InfluxDB and send the data directly to a local dashboard to allow the technicians to visualize real-time data.
More about eManager

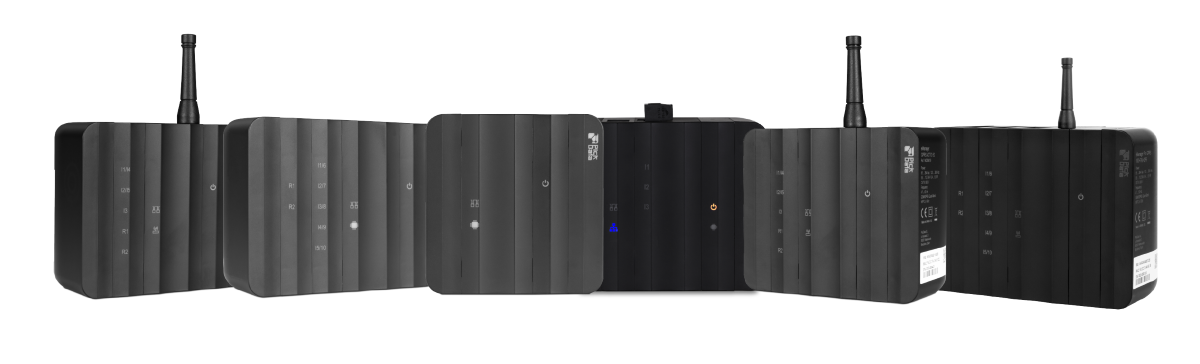

eManager is an IoT controllers product range with more than 20 models, combining different CPUs, GPRS, Wi-Fi and 4G communications, digital & analog inputs & outputs, batteries and more. If you want to know all our modular controllers product range click on the following link.
Subscribe to our Newsletter to be the first to hear about the upcoming updates related to IoT and PickData.
If you are interested in learning more about Node-RED or topics related to Internet of Things, Big Data, Industry 4.0 and Analytics, do not hesitate to continue reading our publications in the News section.
