SEM Three

Three phase energy meter SEM Three 4 quadrants and operating hours Modbus RS-485


The world's smallest three-phase analyzer

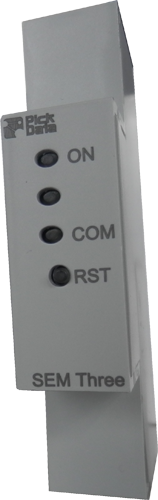

SEM Three is the first three-phase analyzer that fits in 1 DIN rail module.

4 quadrants energy metering and operating time counting to manage with precision how long an asset works




REACTIVE AND POWER PENALTIES

RELIABLE

COST-EFFECTIVE




Avoid reactive penalties and power excess



Combined with our billing simulation you'll avoid surprises in your electricity bill




Three phase energy meter SEM Three 4 quadrants and operating hours Modbus RS-485


There isn't a more versatile consumption analyzer



SEM Three has four working modes that will allow you to read three single-phase systems, one three-phase and up to three balanced three-phase.









Bold complements



Split or closed core transformers. You choose.



Request for quotation







SEM Three - Three phase Modbus energy meter

SEM Three is a three-phase 4 quadrants energy meter that allows to monitor the electrical parameters of your installation including active energy, reactive energy, voltage, current, power, maximum demand and more. These parameters are measured separately for each phase, what gives SEM Three high versatility to work as a three-phase analyzer or a triple single-phase analyzer.

In addition, the module of operating hours counting will allow to manage with precision how long an asset works to ease tasks of predictive maintenance, production control or energy efficiency. This feature allows to configure the electrical parameter that will start the counter, including all voltages, currents and powers, a threshold value and a delay time to start counting.

The design, occupying a single DIN rail module, allows that SEM Three can be placed easily at any installation.

The device has removal connectors for power supply (85-265 Vac), external current transformers (250 mA output) and RS-485 communications.

The communication of measured data works over Modbus RTU standard protocol.



SEM Three - Three phase Modbus energy meter

  • 4 Quadrants
  • Operating hours counting
  • RS-485 slave
  • Modbus RTU protocol
  • Remote configuration
  • Status LEDs
  • Manual reset
  • Compact dimensions. 1 DIN rail module
  • 230 Vac input voltage
  • PC self-extinguishing box

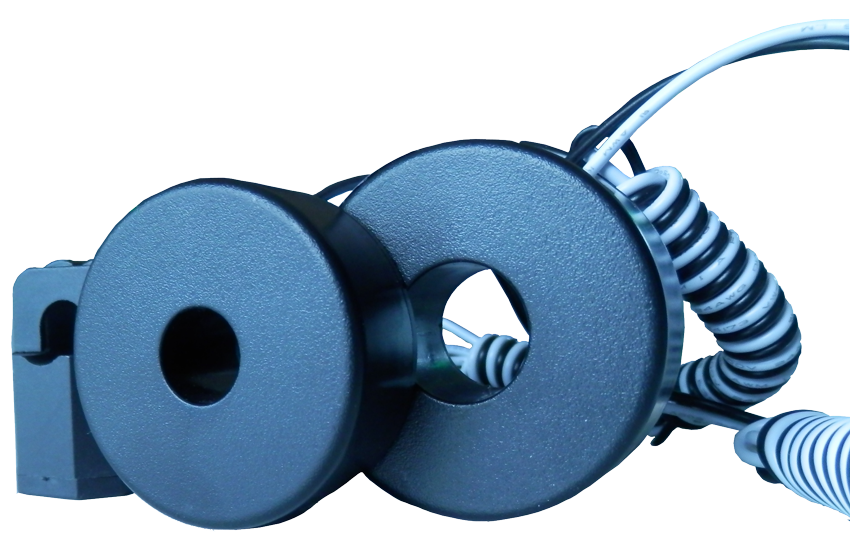

Single-phase split-core transformers

TRA1 20A

  • Maximum current 20 A
  • Secondary 250 mA
  • Inner diameter 16 mm
  • Class 3

TRA1 80A

  • Maximum current 80 A
  • Secondary 250 mA
  • Inner diameter 10 mm
  • Class 3

TRA1 100A

  • Maximum current 100 A
  • Secondary 250 mA
  • Inner diameter 16 mm
  • Class 3

TRA1 250A

  • Maximum current 250 A
  • Secondary 250 mA
  • Inner diameter 25 mm
  • Class 3

Single-phase closed core transformers

TRC1 20A

  • Maximum current 20 A
  • Secondary 250 mA
  • Inner diameter 13 mm
  • Class 0.5

TRC1 100A

  • Maximum current 100 A
  • Secondary 250 mA
  • Inner diameter 12 mm
  • Class 0.5

TRC1 250A

  • Maximum current 250 A
  • Secondary 250 mA
  • Inner diameter 19 mm
  • Class 0.5





SEM Three - Three phase Modbus energy meter

Datasheet SEM Three  English  Español

Manual SEM Three  English  Español  Português

User manual SEM Three  Multilanguage

PC Configuration Software  Download

Single-phase split-core transformers

Manual TRA1 20A  English  Español  Português

Manual TRA1 80A  English  Español  Português

Manual TRA1 100A  English  Español  Português

Manual TRA1 250A  English  Español  Português

Single-phase closed-core transformers

Manual TRC1 20A  English  Español  Português

Manual TRC1 100A  English  Español  Português

Manual TRC1 250A  English  Español  Português
